RCDA-T系列超强风冷电磁除铁器，是我公司最新研制开发的新型产品。其内部磁路设计独特，透磁深；吸力大，其吸力远大于国内除铁器；轴流式风机强迫风冷，风量大，使除铁器散热快、温升低，保障除铁器无故障长期工作。其广泛应用于电厂、港口、码头等对除铁要求较高的场所。
RCDA系列超强风冷电磁除铁器的动画演示：

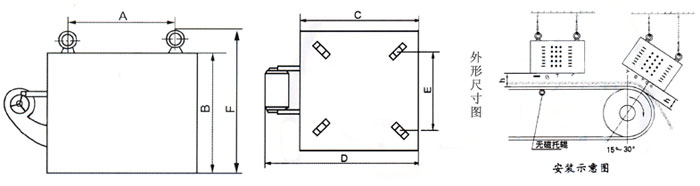

外形尺寸及安装示意图：
主要技术参数：
|
型号 |
适用带宽mm |
额定吊高mm |
磁场强度MT |
励磁功率KW |
风机功率KW |
外型尺寸mm |
适用带速≤m/s |
|||
|
L |
W |
H |
||||||||
|
RCDA-6.5 RCDE-6.5 |
T1 |
650 |
200 |
90 |
3 |
0.37 |
1050 |
1100(710) |
570(860) |
2.5 |
|
T2 |
120 |
5 |
0.75 |
1090 |
1100(750) |
600(890) |
||||
|
T3 |
150 |
8 |
1.1 |
1090 |
1100(750) |
625(920) |
||||
|
RCDA-8 RCDE-8 |
T1 |
800 |
250 |
90 |
5 |
0.37 |
1180 |
1260(900) |
650(920) |
2.5 |
|
T2 |
120 |
9 |
0.75 |
1180 |
1260(900) |
700(960) |
||||
|
T3 |
150 |
13 |
1.1 |
1180 |
1260(900) |
750(1010) |
||||
|
RCDA-10 RCDE-10 |
T1 |
1000 |
300 |
90 |
7.5 |
0.75 |
1380 |
1480(1100) |
730(1030) |
2.5 |
|
T2 |
120 |
12.5 |
1.1 |
1380 |
1480(1100) |
780(1090) |
||||
|
T3 |
150 |
16.5 |
1.5 |
1380 |
1480(1100) |
850(1120) |
||||
|
RCDA-12 RCDE-12 |
T1 |
1200 |
350 |
90 |
10 |
1.5 |
1600 |
1620(1300) |
860(1150) |
2.5 |
|
T2 |
120 |
14 |
1.5 |
1600 |
1620(1300) |
910(1210) |
||||
|
T3 |
150 |
21 |
2.2 |
1600 |
1620(1300) |
920(1250) |
||||
|
RCDA-14 RCDE-14 |
T1 |
1400 |
400 |
90 |
14 |
1.5 |
1780 |
1860(1460) |
920(1270) |
2.5 |
|
T2 |
120 |
18 |
0.75*2 |
1780 |
1860(1460) |
1000(1300) |
||||
|
T3 |
150 |
26 |
0.75*2 |
1780 |
1860(1460) |
1100(1350) |
||||
|
RCDA-16 RCDE-16 |
T1 |
1600 |
450 |
90 |
15 |
1.5 |
1980 |
2060(1660) |
1100(1340) |
2.5 |
|
T2 |
120 |
22 |
1.1*2 |
1980 |
2060(1660) |
1130(1400) |
||||
|
T3 |
150 |
32 |
1.5*2 |
1980 |
2060(1660) |
1170(1460) |
||||
|
RCDA-18 RCDE-18 |
T1 |
1800 |
500 |
90 |
19 |
1.1*2 |
2050 |
2300(1950) |
1120(1440) |
2.5 |
|
T2 |
120 |
28 |
1.5*2 |
2050 |
2300(1950) |
1200(1540) |
||||
|
T3 |
150 |
38 |
2.2*2 |
2050 |
2300(1950) |
1250(1610) |
||||
|
RCDA-20 RCDE-20 |
T1 |
2000 |
550 |
90 |
24 |
1.5*2 |
2660 |
2500(2300) |
1250(1540) |
2.5 |
|
T2 |
120 |
32.5 |
2.2*2 |
2660 |
2500(2300) |
1350(1610) |
||||
|
T3 |
150 |
45 |
2.2*2 |
2660 |
2500(2300) |
1380(1650) |
||||
|
RCDA-22 RCDE-22 |
T1 |
2200 |
600 |
90 |
28 |
1.5*2 |
2410 |
2700(2610) |
1400(1630) |
2.5 |
|
T2 |
120 |
36 |
2.2*2 |
2410 |
2700(2610) |
1430(1660) |
||||
|
T3 |
150 |
52 |
3.0*2 |
2410 |
2700(2610) |
1450(1690) |
||||
|
RCDA-24 RCDE-24 |
T1 |
2400 |
650 |
90 |
32 |
2.2*2 |
2610 |
2900(2870) |
1450(1740) |
2.5 |
|
T2 |
120 |
43 |
2.2*2 |
2610 |
2900(2870) |
1500(1780) |
||||
|
T3 |
150 |
62 |
3.0*2 |
2610 |
2900(2870) |
1570(1890) |
||||
|
注：括号内的尺寸为RCDE-T系列，此系列无风机功率项。· |
||||||||||
