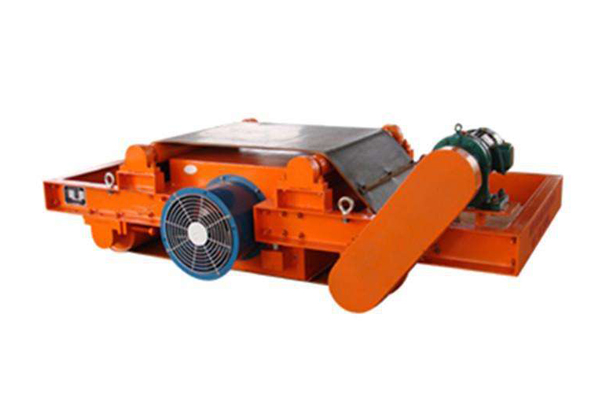

RCDF-T系列超强油冷自卸式电磁除铁器是在RCD-T超强油冷电磁除铁器的基础上，增加了自动卸铁机构。其吸力更强，适应面更广，能满足多种场合的使用要求。
主要技术参数：
|
型号 |
适用带宽mm |
额定吊高mm |
磁场强度MT |
励磁功率KW |
风机功率KW |
驱动电机功率KW |

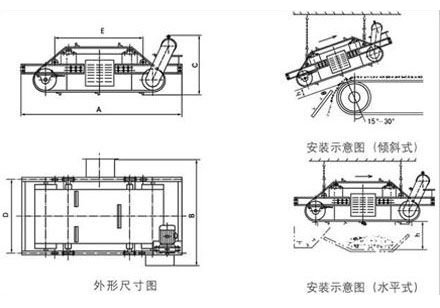

外型尺寸mm |
适用带速≤m/s |
|||
|
L |
W |
H |
|||||||||
|
RCDC-6.5 RCDF-6.5 |
T1 |
650 |
200 |
90 |
3 |
0.37 |
2.2 |
2160 |
1100(710) |
820(900) |
2.5 |
|
T2 |
120 |
5 |
0.75 |
2.2 |
2160 |
1100(750) |
820(940) |
||||
|
T3 |
150 |
8 |
1.1 |
2.2 |
2160 |
1100(750) |
820(970) |
||||
|
RCDC-8 RCDF-8 |
T1 |
800 |
250 |
90 |
5 |
0.37 |
2.2 |
2340 |
1260(900) |
860(970) |
2.5 |
|
T2 |
120 |
9 |
0.75 |
2.2 |
2340 |
1260(900) |
860(1010) |
||||
|
T3 |
150 |
13 |
1.1 |
3 |
2340 |
1260(900) |
860(1050) |
||||
|
RCDC-10 RCDF-10 |
T1 |
1000 |
300 |
90 |
7.5 |
0.75 |
3 |
2810 |
1480(1100) |
1020(1080) |
2.5 |
|
T2 |
120 |
12.5 |
1.1 |
3 |
2810 |
1480(1100) |
1020(1140) |
||||
|
T3 |
150 |
16.5 |
1.5 |
4 |
2810 |
1480(1100) |
1020(1170) |
||||
|
RCDC-12 RCDF-12 |
T1 |
1200 |
350 |
90 |
10 |
1.5 |
4 |
3010 |
1620(1300) |
940(1200) |
2.5 |
|
T2 |
120 |
14 |
1.5 |
4 |
3010 |
1620(1300) |
1000(1260) |
||||
|
T3 |
150 |
21 |
2.2 |
5.5 |
3010 |
1620(1300) |
1040(1300) |
||||
|
RCDC-14 RCDF-14 |
T1 |
1400 |
400 |
90 |
14 |
1.5 |
4 |
3280 |
1860(1460) |
1070(1300) |
2.5 |
|
T2 |
120 |
18 |
0.75*2 |
5.5 |
3280 |
1860(1460) |
1070(1370) |
||||
|
T3 |
150 |
26 |
0.75*2 |
5.5 |
3280 |
1860(1460) |
1070(1420) |
||||
|
RCDC-16 RCDF-16 |
T1 |
1600 |
450 |
90 |
15 |
1.5 |
5.5 |
3590 |
2060(1660) |
1150(1400) |
2.5 |
|
T2 |
120 |
22 |
1.1*2 |
5.5 |
3590 |
2060(1660) |
1150(1460) |
||||
|
T3 |
150 |
32 |
1.5*2 |
7.5 |
3590 |
2060(1660) |
1150(1520) |
||||
|
RCDC-18 RCDF-18 |
T1 |
1800 |
500 |
90 |
19 |
1.1*2 |
7.5 |
3800 |
2300(1950) |
1245(1500) |
2.5 |
|
T2 |
120 |
28 |
1.5*2 |
7.5 |
3800 |
2300(1950) |
1245(1600) |
||||
|
T3 |
150 |
38 |
2.2*2 |
11 |
3800 |
2300(1950) |
1245(1670) |
||||
|
RCDC-20 RCDF-20 |
T1 |
2000 |
550 |
90 |
24 |
1.5*2 |
7.5 |
4460 |
2500(2300) |
1450(1600) |
2.5 |
|
T2 |
120 |
32 |
2.2*2 |
11 |
4460 |
2500(2300) |
1450(1670) |
||||
|
T3 |
150 |
45 |
2.2*2 |
11 |
4460 |
2500(2300) |
1450(1710) |
||||
|
RCDC-22 RCDF-22 |
T1 |
2200 |
600 |
90 |
28 |
1.5*2 |
11 |
4900 |
2700(2610) |
1600(1700) |
2.5 |
|
T2 |
120 |
36 |
2.2*2 |
11 |
4900 |
2700(2610) |
1600(1730) |
||||
|
T3 |
150 |
52 |
3.0*2 |
15 |
4900 |
2700(2610) |
1600(1760) |
||||
|
RCDC-24 RCDF-24 |
T1 |
2400 |
650 |
90 |
32 |
2.2*2 |
15 |
5300 |
2900(2870) |
1700(1800) |
2.5 |
|
T2 |
120 |
43 |
2.2*2 |
15 |
5300 |
2900(2870) |
1750(1850) |
||||
|
T3 |
150 |
62 |
3.0*2 |
15 |
5300 |
2900(2870) |
1800(1960) |
||||
|
注：括号内的尺寸为RCDF-T系列，此系列无风机功率项。 |
|||||||||||
备注：各型号都有高于国标的特强型T1、T2、T3产品设计，额定吊高处磁场强度分别为90mT、120mT、150mT。
